D1xC2X10R


  • Maximum sound pressure level output of 114dB(A)
  • Choice of 64 alarm tone frequencies.
  • 4 remotely selectable alarm stages/channels
  • Positive or negative line stage/channel switching
  • Automatic synchronisation on multi-beacon & sounder systems
  • User selectable strobe flash rates
  • Field replaceable lens colour filter
  • Ratchet adjustable 316 stainless steel bracket
  • Available with custom tone configurations and frequencies
  • Robust corrosion proof aluminium enclosure
  • Duplicate cable terminations
  • UL464 / CAN/ULC-S525 & UL1638 / CAN/ULC-S526


Request for quotation

Description

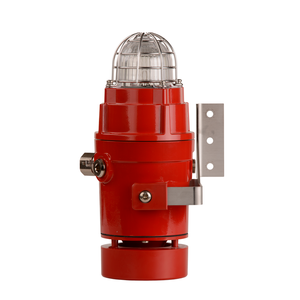

The D1xC2X10R is a globally certified alarm horn sounder with a compact, omni-directional horn and combined with a 10 Joule Xenon strobe beacon. The robust Type 4/4X, IP66 marine grade, corrosion proof aluminium enclosure is approved for Class I Div 1, Zone 1, IECEx and ATEx Zone 1, 2, 21 & 22 explosion proof signalling applications.

Featuring 64 alarm tones, each of the 4 stage/channels can be remotely activated. Class D amplification provides a high sound output with a choice of two power modes. The threaded flameproof joint, multiple cable entries and duplicated, pluggable termination simplifies both installation and routine maintenance. The 24Vdc version is approved for public (alarm horn) and private mode fire alarm use. SIL1 & SIL2 compliant to IEC61508 (2010) as standard.

Datasheet D1xC2X10R

Download the datasheet below.
