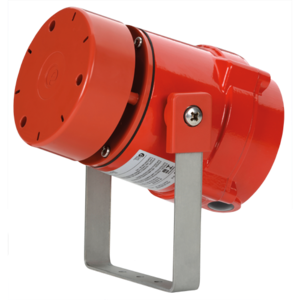

E2S BExS110

  • Omni-directional sound output.
  • Marine grade, corrosion proof, LM6 aluminium enclosure.
  • Ingress protection IP66/67
  • Stainless steel fixings
  • Dual M20 cable entries – adaptors available.
  • Stopping plug included.
  • Reverse polarity diode fitted.
  • Automatic synchronisation on multi-sounder system.
  • Very large termination area.
  • Ratchet adjustable stainless steel ‘U’ bracket.
  • ‘Stage Programmable’ version available:
    - 45 alarm tones
    - 4 remotely selectable stages
    - Any tone can be assigned to any stage
    - User configurable continuous frequency tone


    Request for quotation

Description

The flameproof BExS110 alarm sounders are suitable for Zone 1, 2, 21 & 22 applications. Approved to IECEx, ATEX, Ex EAC and INMETRO standards.

The BExS110-R is an alarm sounder featuring a radial omni-directional horn that disperses the alarm tones radially. Ideal for applications requiring a compact audible signalling solution. The BEx explosion proof Ex d range features enclosures manufactured from corrosion proof, marine grade copper free LM6 aluminium with chromate and powder coat finish. SIL1 & SIL2 Route 2H compliant to IEC61508 (2010) as standard.

Datasheet E2S BExS110

Download the datasheet below.
