E2S D2xL2F

  • Sound output up to 124dB
  • Dual 25V/70V or 100V line transformer
  • Multiple transformer tappings
  • Field replaceable flare component
  • Ratchet adjustable 316 stainless steel bracket
  • Triple cable entries
  • Robust marine grade aluminium enclosure
  • Duplicated cable terminations
  • UL 1480A (Ed 1) – Speakers for Commercial and Professional Use
  • CSA C22.2 No. 205 (Ed 3) – Signal Equipment
  • UL 1480 (Ed 6) – Speakers for Fire Alarm and Signaling Systems,
  • CAN/ULC-S541 (Ed 4) – Speakers for Fire Alarm and Signaling


    Request for quotation

Description

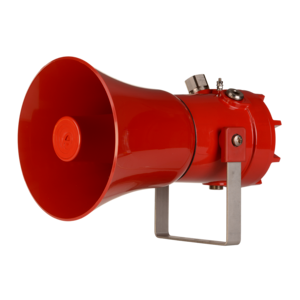

The D2xL2F is a 25W PA loudspeaker with re-entrant flare horn. A high SPL in a robust Type 4/4X, IP66 marine grade, corrosion proof aluminium enclosure ensures suitability for all Class I/II Div 2 and Zone 2 & 22 hazardous location applications.

The re-entrant flare horn is high impact, fire retardant thermoplastic and is field replaceable – the driver employs a standard 1 3/8" -18 male thread coupling. All models have triple cable entries and duplicated terminals. The large termination chamber and cover feature a threaded flameproof joint simplifying both installation and routine maintenance.

Datasheet E2S D2xL2F

Download the datasheet below.
