E2S STExB2LD2
- Five flash rates: 1Hz, 1.33Hz, 2Hz, double and triple flash.
- Automatic synchronisation on multi-beacon systems
- High and low power Steady modes
- Three remotely selectable stages/channels on DC versions.
- A4 316 Stainless Steel guard included as standard
- UV stable polycarbonate lens colour filter – field replaceable
- 4 x cable entries
- Stopping plugs included
- Robust corrosion proof 316L stainless steel enclosure
- DNV type approved IEC 60945 & DNVGL-CG-0339
- UL Marine approved
Request for quotation
Description

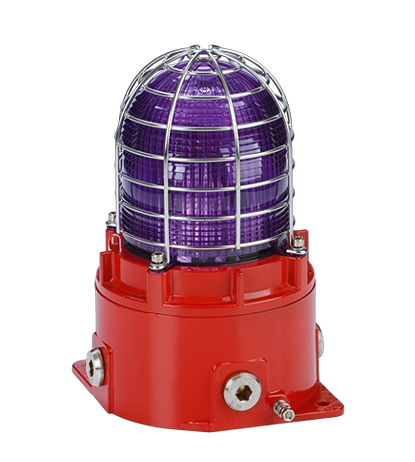

The STExB2LD2 is a globally approved explosion proof multi-function LED beacon. The robust IP66 corrosion proof 316L stainless steel enclosure ensures the STExB2LD2 is suitable for all Zone 1, 2, 21 & 22 and Class I Div 2 hazardous location applications.
The STExB2LD2 utilises an array of high power Cree® LED’s, orientated to optimise visibility in any direction. The beacon can be configured as a steady beacon for status indicator use, or alternatively, one of the five flashing modes may be used for warning applications. DC voltage versions feature three remotely selectable stages enabling multiple warnings to be signalled from one device. The field replaceable colour filter enhances the light output and is constructed from UV stable PC. SIL1 & SIL2 Route 2H compliant to IEC61508 (2010). DNV type approved.
