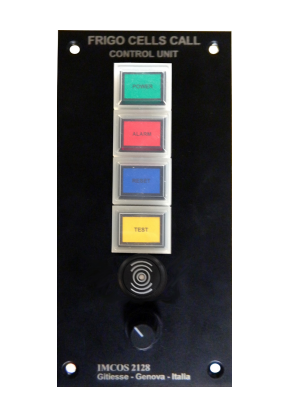

IMCOS-2128 Main control unit for frigo cells call
•
Different versions available:
• console mounting panel
(IMCOS-2128);
• wall mounting unit (IMCOS-2128-W)
•
Aluminium material:
• black colour RAL 9005 (IMCOS-2128);
• grey colour RAL 7001 (IMCOS-2128-W)
•
The unit includes:
• POWER indicator light;
• ALARM indicator light;
• Alarm RESET button;
• Led TEST button;
• Built-in BUZZER (only IMCOS-2128);
• DIMMER (only IMCOS-2128)
• Ingress Protection IP44
Request for quotation
Description
IMCOS-2128 is a main control unit for Frigo Cells call application.
Material
Coated aluminium – black Colour RAL 9005 (IMCOS 2128);
– grey Colur RAL 7001 (IMCOS 2128/W)
Mounting Console mounting (IMCOS 2128); wall mounting (IMCOS 2128/W)
Wiring Terminal strip
Cable glands
(only 2128/W)
1xPG21 (3/4”) for power supply and NO/NC free contact (OPTIONAL);
1xPG29 (1”) for inlet cables from alarm and/or call unit
Powering 24 V DC
Dimensions – Height 192 mm, width 96 mm, depth in console 110 mm (IMCOS 2128);
– Height 230 mm, width 100 mm, depth 110 mm (IMCOS 2128/W)
Weight 0,7 Kg (IMCOS 2128), 2 Kg (IMCOS 2128/W)
Ingress protection IP44
