IMCOS-2132 Alarm unit for frigo cell call
•
Different versions available:
• flush mounting panel (IMCOS-2132);
• wall mounting unit (IMCOS-2132-W);
• wall mounting unit with reset button
(IMCOS-2132-WR)
• Aluminium material,
• black colour RAL 9005 (IMCOS-2132);
• grey colour RAL 7001 (IMCOS-2132-W)
Request for quotation
Description

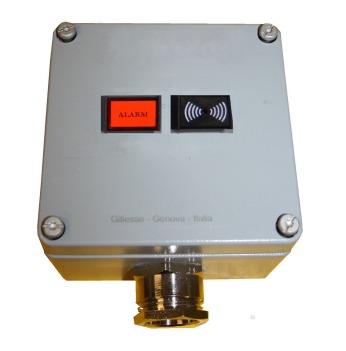

IMCOS-2132 is a flush mounting alarm unit for Frigo Cells call application.
It is supplied with a buzzer and lighted indicator, 24 VDC powered.
The wall mounting version can replace the lamp with a lighted reset button as an option.
Material
Coated aluminium – black colour RAL 9005 (IMCOS-2132);
– grey colur RAL 7001 (IMCOS-2132-Wy)
Mounting – Flush mounting (IMCOS-2132);
– Wall mounting (IMCOS-2132-Wy)
Wiring Terminal strip on the back
Powering 24 V DC
Cable glands 1xPG29 (IMCOS-2132-Wy)
Dimensions
– Height 96 mm, width 96 mm,
depth in console 110 mm (IMCOS-2132);
– Height 122 mm, width 120 mm,
depth in 81 mm (IMCOS-2132-Wy)
Weight 0,3 Kg (IMCOS-2132)
1,3 Kg (IMCOS-2132-Wy)
