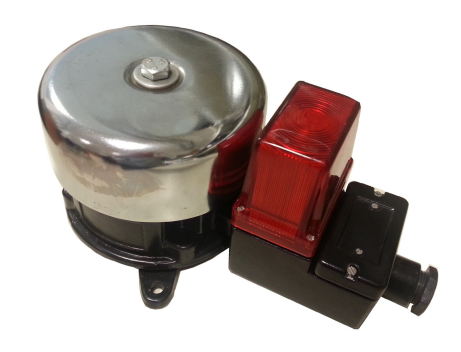

IMCOS-4409 Electric bell
•
Two versions are available:
• electric bell only (IMCOS-4409);
• electric bell with red lamp (IMCOS-4409-L)
• 110 / 220 V AC powering
• 50 / 60 Hz frequency
• Bell & Lamp fused independently on IMCOS-4409-L
• Ingress Protection IP56
Request for quotation
Description
IMCOS-4409 is a wall mounting electric bell. Suitable for reinforcement of alarm notification.
Available in two versions: bell only or bell and lamp.
Material
Steel – black colour RAL 9005
Mounting Wall mounting
Ingress protection IP 56
Weight 1,7 Kg
1,8 Kg. (/L option)
Spl 1m > 95 dB(A)
Power supply 110 / 220 V AC
Current < 0,11 A
< 0,15 A (/L option)
Power consumpt. 7 W
17 W (/L option)
Frequency 50 / 60 Hz
Test certifications
Conducted & radiated emissions
Harmonic current emissions
Voltage fluctuations & flicker
Immunity
Hazardous substances
EN 61000-6-3: 2007+A1:2011
EN 61000-3-2: 2006+A1: 2009+A2: 2009
EN 61000-3-3: 2008
EN 50121-4: 2011
European RoHS standard 2011/65/EU
