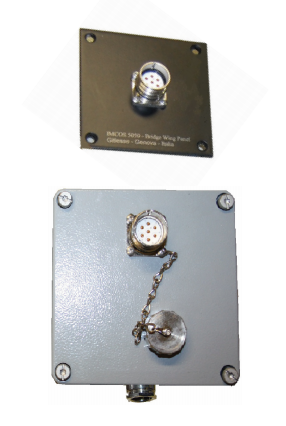

IMCOS-5050 Microphone socket
•
Different versions available:
• flush mounting panel (IMCOS-5050-F);
• wall mounting box (IMCOS-5050-W)
•
Different microphone options:
• handheld microphone;
• gooseneck microphone
•
Aluminium material
• panel: black colour RAL 9005
• box: grey colour RAL 7001
• Ingress Protection: IP 55 (IMCOS-5050-W)
Request for quotation
Description
IMCOS-5050 is a family of sockets used for connection of handheld or gooseneck microphones.
Material
Coated aluminium – black colour RAL 9005 (panel);
– grey colour RAL 7001 (box)
Mounting – Flush mounting (panel);
– Wall mounting (box)
Wiring Terminal strip
Cable glands 1x PG21 (box)
Dimensions Height 96 mm, width 96 mm, depth 80 mm (panel);
Height 122 mm, width 120 mm, depth 81 mm (box)
Weight 0,3 Kg (panel), 1,2 Kg (box)
Ingress protection IP55 (box)
