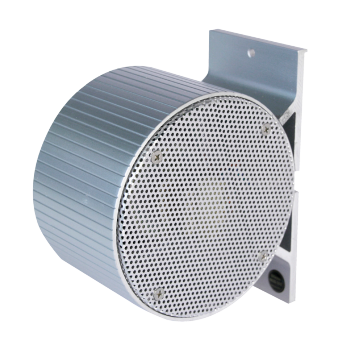

IMCOS-5242 Bi-Directional loudspeaker
• Aluminium construction
• 6 watts maximum power
• Six different tap levels
• Self-resetting fuse to keep the audio line working in case of short circuit
• Integrated Mounting bracket for
simple installation
Request for quotation
Description
IMCOS-5242 is a Bi-directional Loudspeaker suitable for installation in internal spaces such as corridors.
Ideal for wall and ceiling installation. 100 V audio line.
Type approved by marine class societies: ABS, BV, CCS, DNV, GL,LR, RINA.
Material
Aluminium/Anodised Aluminium
Mounting Bracket
Terminal Cable 1m
Ingress protection IP 22
Weight 1,5 Kg
Power 6 W
Max/min temperature +70/-25 °C
Effective frequency range 180-15000 Hz
Dispersion (-6 dB)
1000/4000 Hz 360 Degrees
Impedance 100 V transformer completed with internal fuse
Max SPL (1W/1m) 97 dB
Nominal tapping (secondary coil)
1 : 5 = 6,0 W
1 : 4 = 3,0 W
2 : 5 = 2,0 W factory default value
1 : 2 = 1,5 W
4 : 5 = 0,8 W
2 : 4 = 0,5 W
Test certifications Dry heat cycle
Damp heat cycle
Cold test
Enclosure protection
Sinusoidal vibration
Safety
EN 60068-2-2
EN 60068-2-30
EN 60068-2-1
EN 60529
EN 60068-2-6
