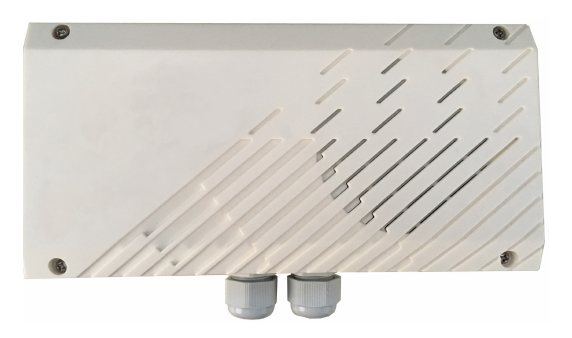

IMCOS-5254 Wall loudspeaker
• ABS enclosure
• 10 watt rated power
• 100V line transformer/8 Ohm options
• Six different tap levels
• Self-resetting fuse to keep the audio line working in case of short circuit
• Ingress Protection IP22
• White Colour RAL 9010
• Talk back button available as an option (IMCOS-5254-TB)
Request for quotation
Description
IMCOS-5254 is a loudspeaker for wall and ceiling installations.
Compact solution for professional use with good sound quality.
Material ABS
– white colour RAL 9010
Mounting 4 screws to wall or ceiling
Cable glands 4 x PG 13,5
Ingress protection IP 22
Weight without/
with transformer 0,5/0,8 Kg.
Nominal/
Max. power 10/15 W
Max/min
temperature +70/-25 °C
Effective frequency
range 150-20000 Hz
SPL (1W/1m) 88 dB
Dispersion (-6 dB)
1000/4000 Hz 140/100 degrees
Impedance on
request 100 V transformer/8 Ohm, complete with internal fuse
Nominal tapping
(secondary coil)
1 : 4 = 10,0 W
1 : 3 = 5,0 W
2 : 4 = 3,5 W
1 : 2 = 2,5 W
3 : 4 = 1,5 W
2 : 3 = 0,8 W
