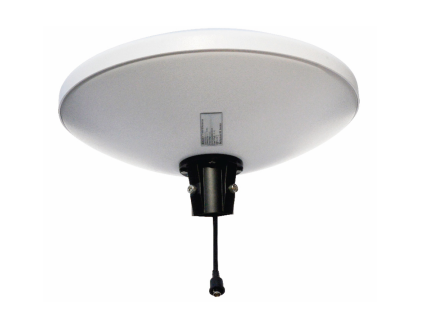

IMCOS-5732-SE TV-FM-AM Omnidirectional antenna 0.1-30 / 40-860 MHz


         Non corrodible material shell. White colour RAL 9010

         Metal base in aluminium die-cast, black finishing with stainless steel bolts

         Automatic level control on 3 bands

         High efficiency suppression filters to
prevent interference from VHF 156 MHz, AIS 162 MHz, LTE/4G 790 MHz

         To be mounted as high and far away as possible from transmitting antennas and radars to avoid interferences



Request for quotation

Description

IMCOS-5732-SE is a omni-directive TV-FMAM antenna suitable for marine installation.

Material
Housing: ABS – white colour RAL9010.
Mounting base: aluminium die-cast [ADC6]
Finishing: black paint, 50 mm/2”
Termination BNC female connector
Dimensions Height 260/180 mm, diameter 450 mm
Weight 3.40 Kg
Frequency range 0.1 – 30 MHz and 40 – 860 MHz
Gain 12 – 25 dB
ALC Output level 95~100 dBuV max
Noise figure <4.5 dB
Output impedance 75 Ohm
Supply voltage 15 V DC
Supply current Approx.
200 mA
Power consumption 3 W
Operation temperature range -40 /+60 °C

Datasheet IMCOS-5732-SE TV-FM-AM Omnidirectional antenna 0.1-30 / 40-860 MHz

Download the datasheet below.

 IMCOS-5732-SE TV-FM-AM Omnidirectional antenna 0.1-30 40-860 MHz
