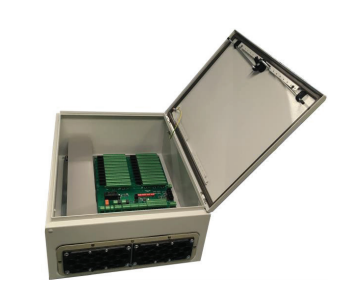

IMCOS-6069-V2 A/V signals controller
• Coated steel enclosure IP66
• Independent activation of up to 20 different devices
• Custom cable entry plate
• 110/230 VAC or 24 DC power supply available
• Fully customizable firmware according to customer specification
Request for quotation
Description
IMCOS-6069-V2 is a stand- alone logic controller for audio and visual devices installed as reinforcement of IMCOS-PA/GA.
IMCOS-6069-V2 can drive up to 20 A/V devices (e.g. IMCOS-6078 indicators series, IMCOS-6089 mimic panel)
IMCOS-6069-V2 is synchronized with IMCOS through dry contacts or RS-485.
Material
Coated steel – grey color RAL 7032
Cable glands Standard: rubber plate multi-size cable
Mounting Wall mounting; bracket included
Wiring Removable terminal blocks
Dimensions Height 700 mm, width 500 mm, depth 260 mm
Weight 20 Kg (approx.)
Ingress protection IP66
Power supply 110/230 VAC 50Hz – 24VDC
