IMCOS-6078 Audio/visual indicator column
•
The indicator column can be equipped with:
• up to 3 high output sounders;
• up to 3 xenon strobe lights;
• up to 8 lighted pictograms
• Red, amber and clear/green strobe lights can be associated to incoming alarms in a flexible way
• The different pictograms can be associated to incoming alarms in a flexible way
• 2 pushbuttons are available to test GA/FA alarms and CO2/custom alarm separately
• Visual and audible indicators compliance to IMO resolutions A.830(19), A.686(17), A.1021(26)
• Visual and audible indicators compliance to PFEER/UKOOA regulations can be supplied on customer request
Request for quotation
Description

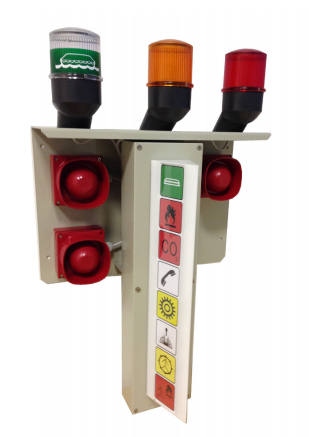

IMCOS-6078 is an audio/visual Indicator Column suitable for installation in noisy areas.
It is equipped with high output sounders, xenon strobe lights and lighted pictograms.
Up to 8 fully customizable pictograms. To be used only with IMCOS 6069 AV column controller.
Material
Coated steel, grey colur RAL 7035
Cable glands PG 36 (1” ¼)
Mounting Wall mounting
Dimensions Height 850 mm, width 520 mm, depth 280 mm
Weight 19 Kg
Power supply 110 VAC/220 VAC/24 VDC from IMCOS 6069 controller
No local power needed
SPL@1m 108 ~ 119 dB(A) depending on selected tone
Flash energy 5 J
Power rating 65 W
