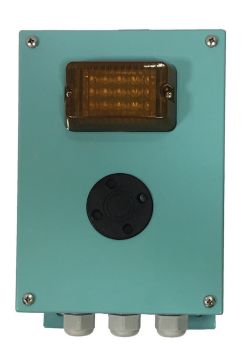

IMCOS-6081 Audio/visual relay unit
• Coated Steel enclosure
• Flashing light, orange lens.
• 108 dB sounder
• Activation by external contact or telephone line
• Different power supply options
Request for quotation
Description
IMCOS-6081 is an optical and acoustic secondary alarm and signal unit designed for application in marine and industrial areas.
The device is connected to an independent power supply to provide an optical and acoustic signal generation activated by analog telephones or sound powered telephones or external electrical dry contact.
Material
Coated steel – Ral 6034
Mounting Wall mount
Cable entry 3 x M22 plastic glands
Wiring Terminal blocks inside
Power supply 24 V DC, 220 V AC, 115 V AC options
Power consumption 10 W
Max. SPL (@1 m) 108 dB
Dimensions L: 166 W: 225 (+30 Cable Glands) H: 115
Weight 2.5 (approx. kg)
Ingress protection IP55
