IMCOS-6089-X


         Up to 8 different customizable lighted indicators

         Built in buzzer

         Flush mount

         No local power supply required



Request for quotation

Description

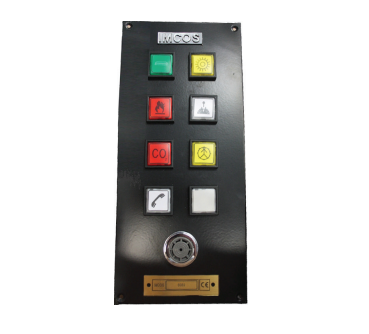

IMCOS-6089 is a flush mount mimic panel for alarm notification in noisy areas.

Designed to work with IMCOS-6069 A/V Controller, can be equipped with up to 8  different lighted indicators customizable with IMO/SOLAS symbols according to system requirements.

Type A/V mimic panel
Material Coated aluminum – RAL 9005
Mounting Flush mount – console mount
Wiring 1.5 mt pre-wired cable and terminal strip plate
Dimensions Height: 303 mm, width: 133 mm, depth: 100 mm
Weight 1.5 Kg
Ingress protection IP44
Power supply 24VDC from A/C system controller
Power
consumption 100 mA
SPL @ 1 meter 95 dB

Datasheet IMCOS-6089-X

Download the datasheet below.
