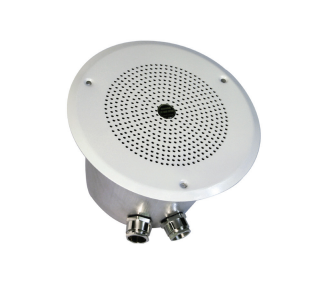

IMCOS-6801 Ceiling Loudspeaker
· Coated aluminum cover. White colour RAL 9010
· Mild steel or aluminum dome construction
· 6 Watt max power
· 100V line transformer / 8 Ohm option
· Six different tap levels
· Self-resetting fuse to keep audio line working in case of short circuit
· Spring clamp for fast wiring
Request for quotation
Description
IMCOS-6801 is a versatile ceiling loudspeaker used in public address announcements installations.
Type approved by marine class societies: ABS, BV, CCS, DNV-GL,LR, RINA.
Material
Aluminium/steel – colour RAL 9010
Mounting Ceiling mount – screws not included
Terminal Spring clamps
Cable glands 2xM20
Weight 1 Kg
Ingress
protection IP22
Power 6W
Operating
temperature -25ºC to +70ºC
Effective
frequency range 50-20000 Hz
SPL @ 1 metre 92 dB
Impedance 100V transformer / 8 Ohm completed with internal fuse
Nominal tapping 1:5 = 6 W
1:4 = 3 W
2:5 = 2 W (factory default setting)
1:2 = 1.5 W
4:5 = 0.8 W
2:4 = 0.5 W
Test
certifications
Dry heat cycle EN 60068-2-2
Damp heat cycle EN 60068-2-30
Cold test EN 60068-2-1
Enclosure protection EN 60529
Sinusoidal vibration EN 60068-2-6
Safety EN 60065
