IMCOS-6951 Talk back waterproof reversible substation
· Standard PVC or Type 316L stainless steel option for watertight box material
·
The box includes:
• 1 watertight horn;
• 1 watertight junction box with push to talk button
· Different junction box versions:
• standard, with PTT button and prewired horn
• with PTT button and horn sockets, for portable horn with own plug
• Cable standard length 1,5 m
• Loudspeaker power options of 10, 15 and 30 watt
• Ingress Protection IP 66
Request for quotation
Description

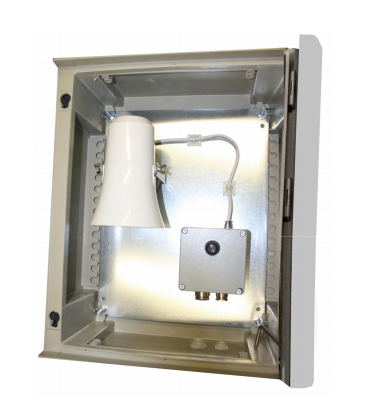

IMCOS-6951 is a talk back waterproof reversible substation composed by waterproof box for wall mounting, containing a watertight horn and a junction box with push to talk button.
Suitable for ship applications in deck areas and engine rooms.
Material
(box) PVC
Type 316L stainless steel
(IMCOS-6951-xy);
(IMCOS-6951-xy-I)
Cable glands 1xPG21 (3/4”)
Mounting Wall mounting
Wiring Standard terminal strip inside
Dimensions Height 530 mm, width 430 mm, depth 200 mm
Weight 13 Kg (IMCOS-6951-xy);
18 Kg (IMCOS-6951-xy-I)
Ingress protection IP66
