IMCOS-6952 Talk back waterproof reversible substation
· Standard PVC or Type 316L stainless steel option for watertight box material
·
The box includes:
• 1 watertight horn;
• 1 handheld microphone with push to talk button;
• 1 watertight junction box
·
Different junction box versions:
• standard, with only microphone socket and prewired horn
• with microphone and horn sockets, for portable horn with own plug
· Cable standard length 1,5 m
· Loudspeaker power options of 10, 15 and 30 watt
· Ingress Protection IP 66
Request for quotation
Description

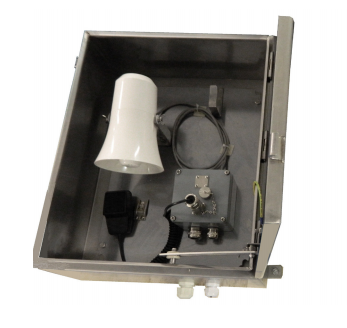

IMCOS-6952 is a talk back waterproof reversible substation composed by a waterproof box for wall mounting, containing a watertight horn and an handheld microphone with push to talk button.
Suitable for ship applications in deck areas and engine rooms
Material
(box) PVC
Type 316L stainless steel
(IMCOS-6952-xy);
(IMCOS-6952-xy-I)
Cable glands 1xPG21 (3/4”) & 1xPG16 (5/8”)
Mounting Wall mounting
Wiring Standard terminal strip inside
Dimensions Height 530 mm, width 430 mm, depth 200 mm
Weight 13 Kg (IMCOS 6952-xy);
18 Kg (IMCOS 6952-xy-I)
Ingress protection IP66
