IMCOS-6953 Talk back waterproof reversible substation
· Standard PVC (IMCOS-6953-x) or Type 316L stainless steel (IMCOS 6953-x-I) option for watertight box material
·
The box includes:
• 1 watertight horn;
• 1 headset/microphone c/w cable and plug;
• 1 watertight junction box with push to call button
· Cable standard length 1,5 m
· Loudspeaker power options of 10, 15 and 30 watt
· Ingress Protection IP 66
Request for quotation
Description

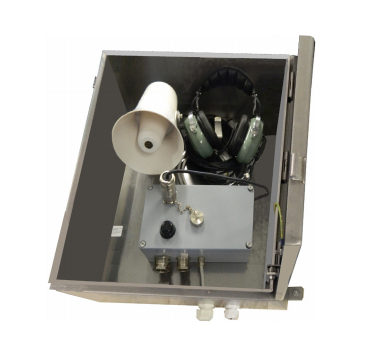

IMCOS-6953 is a manoeuvring talk back waterproof reversible substation composed by a waterproof box for wall mounting, containing a watertight horn and an headset with microphone.
Suitable for ship applications in deck areas and engine rooms.
Material
(box) PVC
Type 316 stainless steel
(IMCOS-6952-x);
(IMCOS 6952-x-I)
Cable glands 1xPG21 (3/4”) & 1xPG16 (5/8”)
Mounting Wall mounting
Wiring Standard terminal strip inside
Dimensions Height 530 mm, width 430 mm, depth 200 mm
Weight 13 Kg (IMCOS-6952-x);
18 Kg (IMCOS-6952-x-I)
Ingress protection IP66
