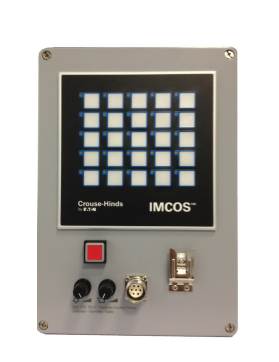

IMCOS-7015-V2 PA/GA & TB Access Panel


·         The panel includes:
• 25 pushbuttons polycarbonate keypad;
• Backlit intensity dimmer
• Volume control for external loudspeaker when integrated with talk back system
• Emergency call illuminated pushbutton

·         Different microphone options:
• handheld with PTT pushbutton
• socket or fixed gooseneck

·         Wall mount installation

·         Modulation LED for speech monitoring available as option

·         Multiple remote-control panels can be controlled over a proprietary network via RS 485 data interface to the IMCOS / SONIX main electronics

·         Providing local loudspeaker bypass to avoid audio feedback

·         Deployable with redundant connection to distributed PA/GA systems



Request for quotation

Description

IMCOS-7015-V2 is an access panel designed for announcements, pre-recorded messages broadcast through the IMCOS / SONIX public address and alarms triggering as well as talk back main station. Equipped with 25 pushbuttons customizable keypad and one additional pushbutton dedicated to emergency call or alarm enabler function. Designed to meet and exceed the requirements of ABS, BV, CCS, DNV-GL, LR, RINA, Norsok and UKOOA/PFEER.

Material Coated alluminium – RAL 7001 (enclosure)
Mounting Wall mount
Dimensions (mm) L 330 W 230 H 110
Weight Approx. 3.2kg
Cable Glands
Nickel Plated Brass
(cable diameter
min/max in mm.)
Single connection: 1xM25 (10-18)
+ Talk back: 1xM20 (6-13), 1xM12 (3-6.5)
Double connection: 2xM25 (10-18)
+ Talk back: 1xM12 (3-6.5)
Wiring Terminal strip inside

Datasheet IMCOS-7015-V2 PA/GA & TB Access Panel

Download the datasheet below.

 IMCOS-7015-V2 PA-GA & TB Access Panel
