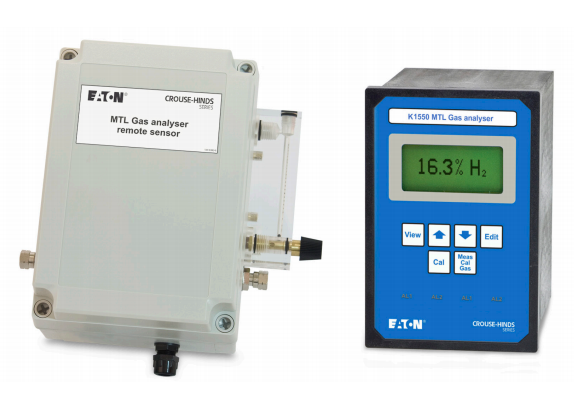

MTL K1550 Hydrogen, Helium, Argon and Xenon Gas Analyser
· Measured gases include: H2, He, Ar, CO2, Kr, Ne and Xe
· Proven technology from the katharometer experts
· Hazardous area options
· Corrosive gas sensor options
· Non-depleting remote sensor
· Fixed and variable compensation
Datasheet:Request for quote
Description
The K1550 range of analysers are ideal for measuring the % level of one gas in a binary or pseudo-binary mixture. For example, air is composed of many gases but in known, fixed ratios, therefore hydrogen in air is a pseudo-binary mixture and can be measured with the K1550.
Specifications
Ranges available
(Depends upon measured/background gas)
0 – 20%, 80 – 100%, 0 – 100% for most gases
0 – 5%, for most hydrogen ranges
Consult Eaton for gas type and range
Stability
<1 % f.s.d./month
Accuracy
±2% f.s.d. depending upon span and gas
Repeatability
<1% f.s.d.
Speed of response
T90: 20 seconds (typ.)
Sample flow
100–300ml/min for optimum performance
Sample pressure
Nominally atmospheric, set by vent pressure
Sample connections
Inlet and outlet: Captive seal compression suitable for 0.25inch
(or 6mm) outside diameter tube
Display
LCD 2 or 4 lines of alphanumeric characters
Analogue output
4–20mA
(User-programmable)
Outputs (alarm)
Two alarms: each user-configurable to OFF, HIGH or LOW
Relay outputs
Rated at 30V ac or dc, 0.5A, normally energised
Ambient operating temperature
range
Sensor: –10°C to 40°C
Electronics: 0°C to 40°C
(0-90% R.H. non-condensing)
Storage temperature range
–5°C to +55°C
(0-90% R.H. non-condensing)
Supply Voltage
110/120V or 220/240V AC, 50/60Hz
Power consumption
12VA
MOUNTING
Electronics unit
Panel mounting with two clamps
Remote sensor unit
Wall/ bulkhead
MATERIALS
Enclosure
Glassfibre-reinforced Noryl to IP40
(IP54 locking door option)
