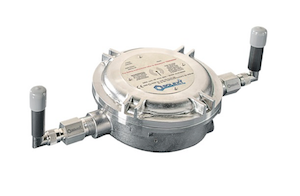

Solexy Explosion proof radio devices
• The Solexy Router / WiFi access point is a cost effective multipurpose solution for a wide range of wireless applications
• Supporting GPRS/EDGE/UMTS/HSPA+/LTE it is dedicated for users seeking easy and fast mobile internet access
• Internet connection is easily available and configurable via an internet browser without any need of installing software or drivers for the device.
• Available with different modems and options such as Wi-Fi, dual sim, GPS receiver, it is an unique solution for M2M and mobile data application (M2MCloud & M2MAir ready).
• Thanks to the rugged Solexy WA and WS enclosures and the Atex and IECEx certificates, this wireless device is suitable for installation in Ex classified areas
Request for quotation
Description
SOLEXY provides innovative safety technologies that efficiently allow for the safe integration and easy operation of radios and other electronic equipment in hazardous area rated environments.
Main industries of applications are refineries, oil and gas rigs, chemical plants and mines.
SWA and SWS are a range of explosion proof radio devices
rated for Atex and IECex Zone 1, 2, 21, 22 and mining (SWS only).
The range consists of 3 different categories of products :
VHF and UHF radiomodems available at 169 MHz , 433 MHz and 868 MHz, licence free European ISM frequency. Suitable for wireless transmission of serial ports (RS232 or RS485), coverage distance up to 10 Km
VHF and UHF RTUs and wireless modbus I/O, available at 169 MHz and 868 MHz, licence free European ISM frequency. Provided with 4 D/I , 2 D/O, 2 A/I , 2 A/O and serial port RS485), coverage distance up to 15 Km
GSM routers and access points, all quad band cellular radio, GSM / GPRS / UMTS / HSPA+ / LTE, according to model. Available with single or double SIM , with or without WiFi module. RS232 and RS485 serial ports.
Multiple operational modes : Access point, WiFi client, Serial to LAN , Serial to 3G/4G , LAN to 3G/4G, Modbus gateway
Features
Operating Functions
WiFi access point (Wifi to LAN or WiFi to 3G/LTE/HSPA+)
WiFi client (LAN to WiFi)
3G/LTE/HSPA+ client (LAN to 3G/LTE/HSPA+)
Serial (232-485) to 3G/LTE/HSPA+
Serial (232-485) to LAN
Operating frequency
Up to quad band 800/850 , 900 , AWS 1700 , 1900 , 2100 (Telit cellular module) according to modem feature
Advanced
RS-232/485-TCP/UDP forwarding, ModBus gateway, NTRIP, SMS server, NTP server
Management
DCHP (client/server), IEEE 802.1Q tagging, IPsec, OpenVPN, Firewall, NAT, PAT, DDNS, CARP, Static routing, Access Control, Syslog
Option
GPS receiver
Dual sim
Heavy duty construction
Explosion proof Ex d IIC enclosure made of alluminum (WA series) or stainless steel (WS series) weather proof IP66/68
Specifications
ATEX / IECEx Certification (pending): Ex II 2 (1) G Ex db mb [ia Ga] IIA/IIB/IIC T5-T4 Gb
Ex II 2 (1) D Ex mb tb [ia Da] IIIC T110°C / T140°C Db
Ex I M2 (M1) Ex db mb [ia Ma] I Mb (WS only)
Ambient Temperature Range: -20°C +60°C
Housing Material: WA series : die cast aluminium polyester powder coated
WS series: AISI 316 electropolish
Power
supply: 6-30VDC
Power
consumption: 5W
Frequency
range: U
version = GSM 900, DCS 1800, EDGE 900, EDGE 1800, FDD B1, B8
L
version = GSM 900, DCS 1800, EDGE 900, EDGE 1800, FDD B1, B2, B3; B4, B5, B7,
B8
H
version =GSM 850/900, DCS1800/1900, EDGE 850/900, EDGE 1800/1900, FDD B1, B2,
B4, B5,
IEEE: 802.11b/g/n,
802.3, 082.3u
Data
rate: up to
150 Mbps
ATEX /
IECEx Certification (pending): Ex II
2 (1) G Ex db mb [ia Ga] IIA/IIB/IIC T5-T4 Gb
Ex
II 2 (1) D Ex mb tb [ia Da] IIIC T110°C / T140°C Db
Datasheet Solexy Explosion proof radio devices
Download the datasheet below.
Data Sheet EXPLOSION PROOF WIFI MIMO DUAL RADIO ACCESS POINT
