VYRTYCH Kern-P

  • Operating voltage:
    220-240 V / 50/60 Hz AC, 220-240 V DC
  • Source:
    LED, 4000K, CRI +80, MacAdam3
  • Housing:
    Plastic material PC (polycarbonate), colour grey RAL 7035
  • Cover:
    PC (polycarbonate) opal
  • Fastening:
    Direct fixing to the ceiling or wall of the illuminated space using two self-locking fixing pens (standard equipment), self-locking cable hanging on two gripping pens, cable hanging with hanging eyes.
  • Connection:
    Screwless three-pole terminal block, max. wire cross-section 2.5 mm2
  • Standard equipment:
    2x plastic cable gland PG 13,5 for cable diameter 6-12 mm, 2x plastic cable plug M20 and 2x stainless steel retaining pen (AISI304) for direct fixing of the luminaire to the mounting surface
  • Calculated lifetime - LED modules:
    L80B10 Ta 30 - 70 000 h
    L70B10 Ta 30 - 100 000 h




​
Request for quotation

Description

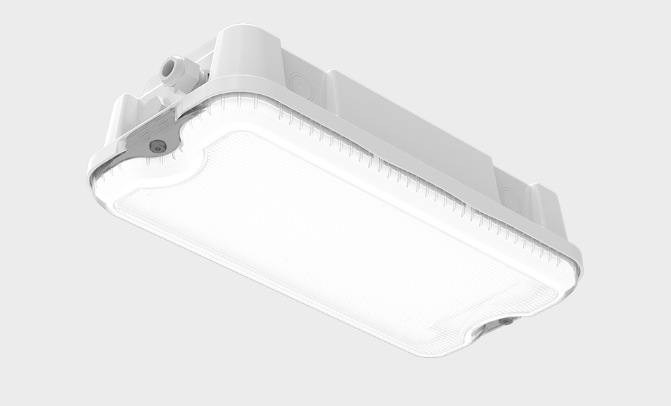

KERN is a compact industrial luminaire ideal for applications in industrial halls, production and assembly plants, warehouses, logistics centres, technical areas and other areas where high durability, reliability and long service life are required. The body is made of robust polycarbonate (RAL 7035) and is UV stable, ensuring long term durability. The cover is made of opal polycarbonate, which provides effective light diffusion and high impact resistance. The luminaire is available in different chromaticity temperatures to adapt to different environments. The luminaire can be equipped with a dimming function on request. Designed to be mounted and suspended.

Datasheet VYRTYCH Kern-P

Download the datasheet below.
