Description

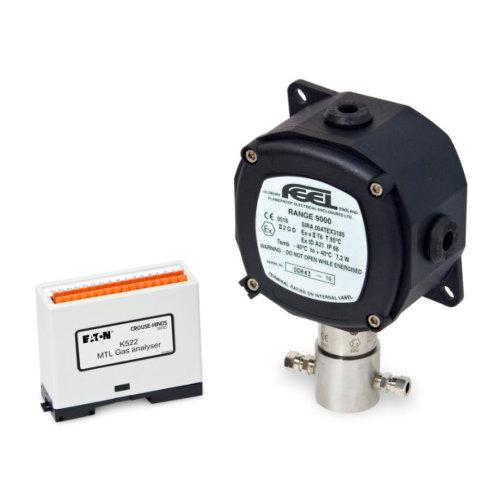

The K522 OEM analyser is a DIN rail mounted instrument consisting of an electronics module and a remote flame proof Katharometer sensor. To complete the measurement system a suitable sampling system, gassing cap, Junction box and cable are required.  The K522 is suitable for measuring Hydrogen, Helium, Nitrogen or Argon in binary or pseudo-binary gas mixtures.

Specifications

Measure Hydrogen (H2), Helium (He), Argon (Ar) and other gases.

Range 0 to 10% or 0 to 100% depending on gas type

Remote ATEX certified sensor

RS 232 and 4 to 20 mA outputs

Lab view based interface software

24 V dc supply

 Temperature compensated 0 to +55°C
