DEX30 ALLOY (Discontinued)
· Anodized marine grade alloy 6082 housing
· ATEX and IECEx approved
· Exe terminal chamber for easy connection
· Available with integrated optical fiber link or IP over coaxial cable
· Intelligent humidity and temperature control
· HDTV 1080p
· 40x optical zoom and 12x digital zoom
· Endless 360° pan and high zoom in combination with high resolution
· Certified temperature: -20°C to +56°C
Request for quotation
Description
Dexter DEX30 is a top-of-the-line explosion proof PTZ network dome camera, offering a rich viewing experience with HDTV 1080p, 40x optical and 12x digital zoom and fast and precise pan/tilt performance for superb wide area coverage.

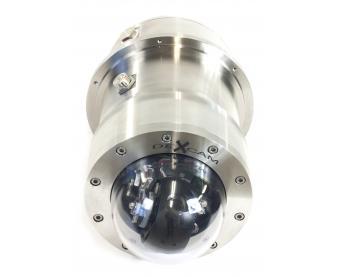

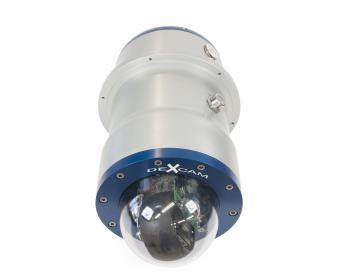

DEX30 comes either in a marine grade alloy or a stainless steel 316L housing, making this range of cameras suitable for both onshore and offshore industry.
Features
- ATEX and IECEx approved
- Exe terminal chamber for easy connection
- Available with integrated optical fiber link or IP over coaxial cable
- Intelligent humidity and temperature control
- HDTV 1080p
- 40x optical zoom and 12x digital zoom
- Endless 360° pan and high zoom in combination with high resolution
- Shock detection
- Enhanced intelligent video
- Fast and precise pan/tilt performance
Specifications
Camera Specifications
Camera electronics:
Axis Q6075
Image sensor:
Progressive scan CMOS 1/2.8″
Lens:
4.25-170 mm, F1.6-4.95 Horizontal field of view: 65.1°-2.00° (1080p) Vertical field of view: 39.1°-1.18° (1080p) Autofocus, auto-iris
Day and night:
Automatically removable infrared-cut filter
Min illumination/light sensitivity (lux):
Color: 0.1 lux at 30 IRE, F1.6 B/W: 0.002 lux at 30 IRE, F1.6
Video compression:
H.264 main and high baseline profiles (MPEG-4 Part 10/AVC) Motion JPEG
Max video resolution (pixels):
1920×1080 (HDTV 1080p) to 320×180
Frames per second (60/50 Hz):
Up to 50/60 fps (50/60 Hz) in HDTV 180p
Pan/tilt/zoom:
Pan: 360° endless, 0.05° – 450°/s
Tilt: 168°, 0.05° – 450°/s
40x optical zoom and 12x digital zoom,
Total 480x zoom
Mechanical
Material:
Anodized Alloy 6082 or Stainless Steel 316L
Weight:
Alloy approx. 25 kg, Stainless Steel approx. 50 kg
Certified temperature:
-20°C to +46/+56°C
Ingress protection:
IP66
Entries:
2 x M25, Ex e
Explosion Proof Certification
ATEX:
II 2 G Ex db e IIC T5/T6 Gb*
II 2 D Ex tb IIIC T85°C Db*
-20°C ? Tamb ? +46°C/56°C*
IECEx:
Ex db e IIC T5/T6 Gb*
Ex tb IIIC T85°C Db*
-20°C ? Tamb ? +46°C/56°C*
* Dependent on model and options
