Description

We have replaced this product with: Oxalis XD70 HD IP series. For specifications of recommended replacement product, see the datasheet.

Dexter DEX30 is a top-of-the-line explosion proof PTZ network dome camera, offering a rich viewing experience with HDTV 1080p, 40x optical and 12x digital zoom and fast and precise pan/tilt performance for superb wide area coverage.

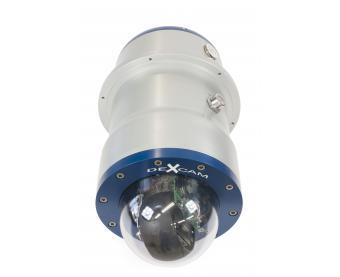

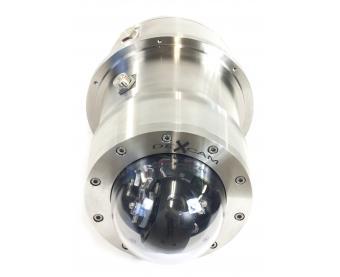

DEX30 comes either in a marine grade alloy or a stainless steel 316L housing, making this range of cameras suitable for both onshore and offshore industry.

Features

• ATEX and IECEx approved
• Exe terminal chamber for easy connection
• Available with integrated optical fiber link or IP over coaxial cable
• Intelligent humidity and temperature control
• HDTV 1080p
• 40x optical zoom and 12x digital zoom
• Endless 360° pan and high zoom in combination with high resolution
• Shock detection
• Enhanced intelligent video
• Fast and precise pan/tilt performance

Specifications

Camera Specifications

Camera electronics:

Axis Q6075

Image sensor:

Progressive scan CMOS 1/2.8”

Lens:

4.25-170 mm, F1.6-4.95 Horizontal field of view: 65.1°-2.00° (1080p) Vertical field of view: 39.1°-1.18° (1080p) Autofocus, auto-iris

Day and night:

Automatically removable infrared-cut filter

Min illumination/light sensitivity (lux):

Color: 0.1 lux at 30 IRE, F1.6 B/W: 0.002 lux at 30 IRE, F1.6

Video compression:

H.264 main and high baseline profiles (MPEG-4 Part 10/AVC) Motion JPEG

Max video resolution (pixels):

1920×1080 (HDTV 1080p) to 320×180

Frames per second (60/50 Hz):

Up to 50/60 fps (50/60 Hz) in HDTV 180p

Pan/tilt/zoom:

Pan: 360° endless, 0.05° – 450°/s

Tilt: 168°, 0.05° – 450°/s

40x optical zoom and 12x digital zoom,

Total 480x zoom

Mechanical

Material:

Anodized Alloy 6082 or Stainless Steel 316L

Weight:

Alloy approx. 25 kg, Stainless Steel approx. 50 kg

Certified temperature:

-20°C to +46/+56°C

Ingress protection:

IP66

Entries:

2 x M25, Ex e

Explosion Proof Certification

ATEX:

II 2 G Ex db e IIC T5/T6 Gb*

II 2 D Ex tb IIIC T85°C Db*

-20°C  < Tamb < +46°C/56°C*

IECEx:

Ex db e IIC T5/T6 Gb*

Ex tb IIIC T85°C Db*

-20°C < Tamb < +46°C/56°C*

* Dependent on model and options
