DEX30-IP starlight ALLOY (Discontinued)
· ATEX and IECEx approved
· Exe terminal chamber for easy connection
· Available with integrated optical fiber
· HDTV 1080p
· 30x optical zoom and 12x digital zoom
· Incorporates the latest H.265 video compression technology to reduce bandwidth and storage requirements
· Built-in Intelligent Video Analytics (IVA) alert operators in case of unusual scene activity
· Edge intelligence with Intelligent Tracking and
· Object detection even when the camera is moving
Description
Dexter DEX30-IP Starlight is a top-of-the-line explosion proof PTZ intelligent network dome camera, offering a rich viewing experience with HDTV 1080p, 30x optical and 12x digital zoom and fast and precise pan/tilt performance for superb wide area coverage.

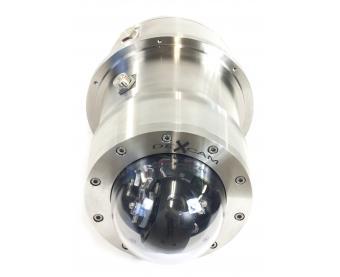

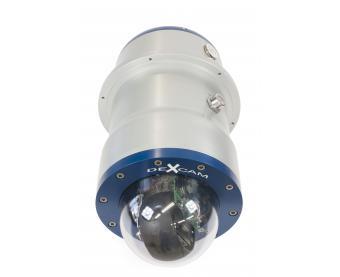

DEX30-IP Starlight comes either in a marine grade alloy or a stainless steel 316L housing, making this range of cameras suitable for both onshore and offshore industry.
Features
- Zone 1/21 and Zone 2/22 use
- II 2 G Ex db eb IIC T5 or T6 Gb
- II 2 D Ex tb IIIC T85°C Db
- ATEX and IECEx approved for gas and dust
- Temperature range -20 °C to +56 °C
- IP66
- Exe terminal chamber for easy connection
- Available with integrated optical fibre link
- HDTV 1080p
- 30x optical zoom and 12x digital zoom
- Excellent low-light performance and High dynamic range of 120 dB to see detail in difficult light conditions
- Incorporates the latest H.265 video compression technology to reduce bandwidth and storage requirements
- Built-in Intelligent Video Analytics (IVA) alert operators in case of unusual scene activity
- Edge intelligence with Intelligent Tracking and object detection even when the camera is moving
Specifications
Camera Specifications
Camera electronics:
IP starlight
Image sensor:
CMOS 1/2.8”
Lens:
4.3 mm to 129 mm F1.6 to F4.7
Field of View (FOV):
2.3° to 64.7°
Day and night:
Automatically removable infrared-cut filter
Video performance – Sensitivity:
(3100K, reflectivity 89%, 1/30, F1.6, 30 IRE) Color: 0.0077 lx, Monochrome:
0.0008 lx
Video compression:
H.265, H.264, M-JPEG
Effective Picture, Elements
(Pixels):
1944 x 1212 (2.35 MP)
Frame rate:
1080p: 30fps; 720p: 60fps
Pan/tilt/zoom:
Pan: 360° endless, 0.05°–450°/s Tilt: 168°, 0.05°–450°/s Zoom: 30x optical, 12x
digital, total 360x zoom
Mechanical
Material:
Anodized Alloy 6082 or Stainless Steel 316L
Weight:
Alloy approx. 25 kg, Stainless Steel approx. 50 kg
Certified temperature:
-20°C to +56°C
Ingress protection:
IP66
Entries:
2 x M25, Ex e
Explosion Proof Certification
ATEX:
II 2 G Ex db eb IIC T5/T6 Gb*
II 2 D Ex tb IIIC T85°C Db*
-20°C < Tamb < +46°C/56°C*
IECEx:
Ex db eb IIC T5/T6 Gb*
Ex tb IIIC T85°C Db*
-20°C < Tamb < +46°C/56°C*
* Dependent on model and options
Datasheet DEX30-IP starlight ALLOY
Download the datasheet below.
